CTC is something new – not a small evolution but a revolution. No wonder we are currently getting a lot of skeptical questions. So we still have a lot to explain and prove.

With this article, we are starting a series about the large test layout of our chief developer. It was started many years ago and then parked for a while to develop CTC. This is what it looks like today, on September 7, 2020:

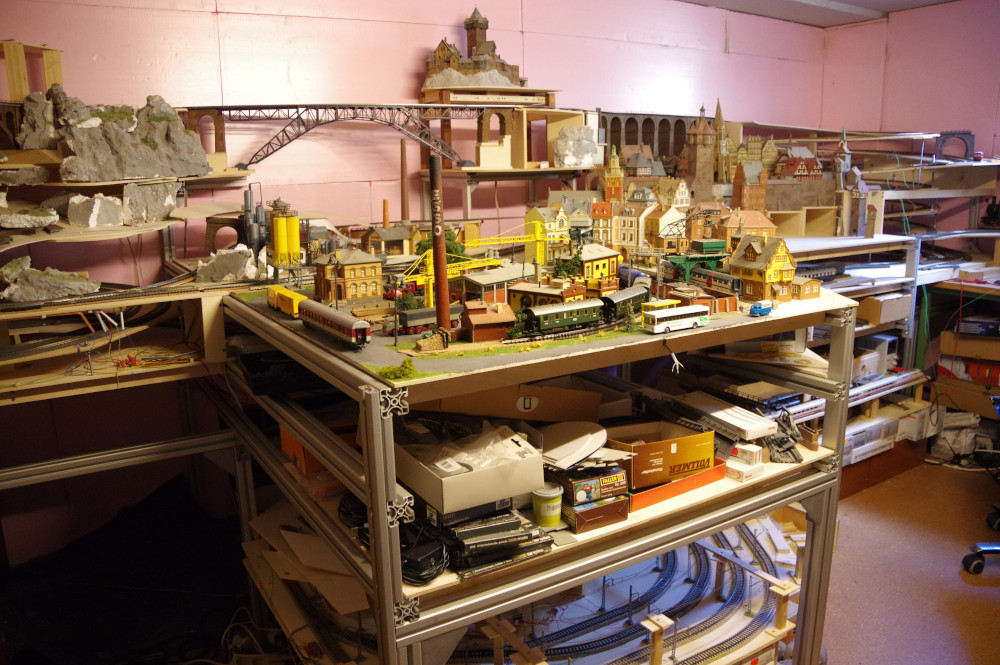

Testanlage am 07.09.2020

Technical Data

  • Area 6.5 m², length 4.60 m, depth up to 1.90 m
  • 7 levels: mountain route, main level, underground station, S-Bahn and three levels of staging yard
  • 2 track spirals to the staging yard levels
  • Track material in the visible area Märklin K-track, station and S-Bahn Märklin C-track and staging yard Märklin M-track
  • In the final expansion around 60 turnouts, 60 light signals and at least as many CTC-IR beacons
  • Around 40 locos from the ancient analog treasures to new acquisitions will eventually run with CTC-Loco-Modules
  • The Car-System should also run with CTC one day.

Already equipped with CTC-Turnout-Modules are 19 C-track turnouts. In the first load test, we had another 30 CTC-Turnout-Modules and 5 converted locos in operation without any problems. The analysis showed that scaling up to 250 modules in total should pose no problem.

Apart from the Car-System, CTC can already do everything needed – it's just a matter of available free time until the conversion is complete.

Planning

Last weekend was mainly dedicated to planning.

First, the underground station is to be functionally completed according to the Stuttgart 21 model. The turnouts already have a CTC module, but the IR beacons and light signals are still missing.

Light Signals

Unfortunately, Märklin installs a decoder in its current light signals that we can control, but which offers no added value for CTC. When we saw the price, it quickly became clear that Märklin signals would not be an option. For all those who already own Märklin signals and want to switch to CTC, we have nevertheless procured two Märklin signals and will discuss their control in a separate article.

For the demo layout, Viessmann signals have now been ordered for the visible area and Völkner self-built signals for the invisible area. We have also decided against Viessmann's Multiplex for cost reasons.

Such a Viessmann signal has up to 10 individually controllable LEDs. This is even too much for our CTC-Multi-I/O-Board. So a new module that had been in the back of our minds was quickly created: the CTC-IO-Extender. Up to 7 of these modules can be connected to any CTC module via the I2C bus and provide 16 additional switching outputs each.

In about two weeks, the prototype PCBs will arrive and then only need to be assembled. Until then, we can already manufacture the IR beacons and solder the cables to the correct lengths.

Continuation in Part 2
