This installation guide applies to the double slip turnout 24624:Double slip turnout

as well as the slim double slip turnout 24720 from Märklin’s C-track range.

Both use one of the drives 74490, 74491 or 74492, which feature a JST ZH connector.

A cable with the matching plug is provided with the CTC-Turnout-Module (item no. WU-M-4L-C1 ).

Installing and connecting the CTC module

The CTC module is placed onto the pins provided for the Märklin decoder and pressed down.

This is how the drive is connected to the CTC-Turnout-Module:

  • Plug the connector of the cable soldered to the CTC-Turnout-Module into the turnout drive.
  • Attach the spade terminal on the brown wire to a tab labelled “0” (rail).
  • Attach the spade terminal on the red wire to a tab labelled “B” (centre conductor).

Connecting double slip turnout

The following image shows a right-hand turnout with installed drive and CTC-Turnout-Module.

TODO turnout from below

The three individual wires (2× blue and 1× yellow) can be used to connect a signal or another turnout. The four-pin socket can accommodate two IR beacons.

Adding the CTC module to the WiFi network

If the CTC-Turnout-Module has not yet been added to the model railway’s WiFi network, this must be done first. The instructions can be found in the user manual under Chapter 3.1 “Adding modules to the WiFi network” .

Opening the configuration

An added CTC-Turnout-Module appears under its name in the module list in the CTC app. Click the pencil icon to open the “signal tower configuration”.

Open config from module list

Then click the “Change config” button:

Change config

Adding a product

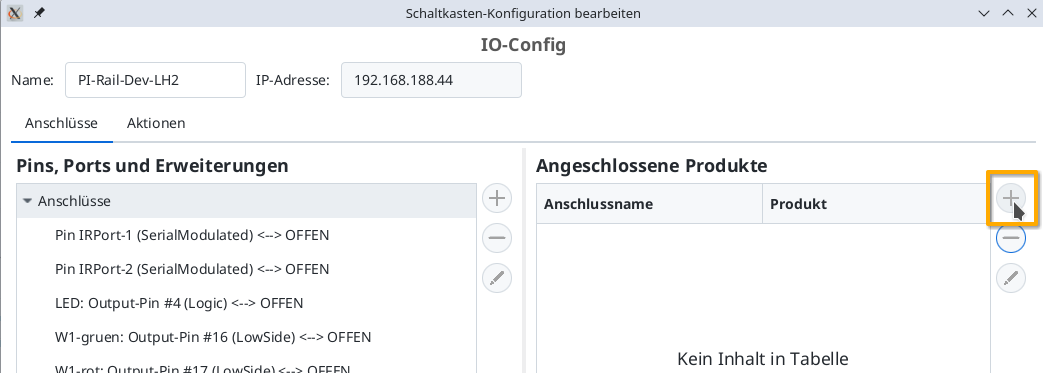

In the config dialog, click the plus button to the right of “Connected products” to select what type of product you have connected:

Edit config 1

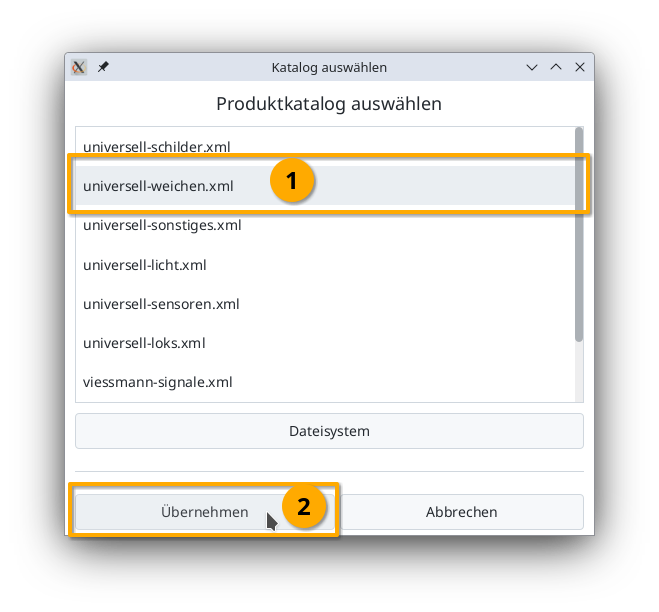

Choose the product catalogue “universal-turnouts” and then click “Apply”:

Edit config 2

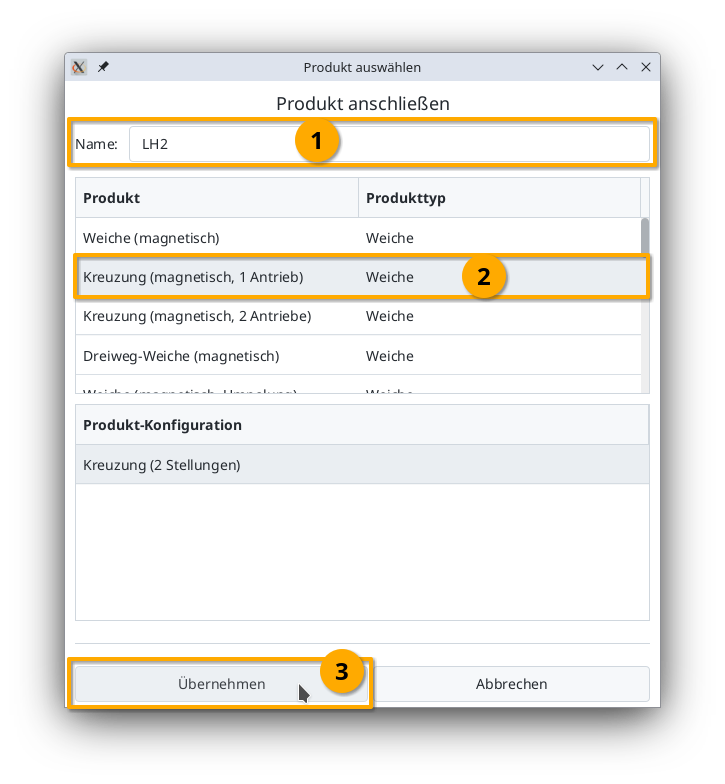

Give your turnout a meaningful name, select the appropriate product and configuration, then click “Apply”:

Edit config 3

Connecting the product

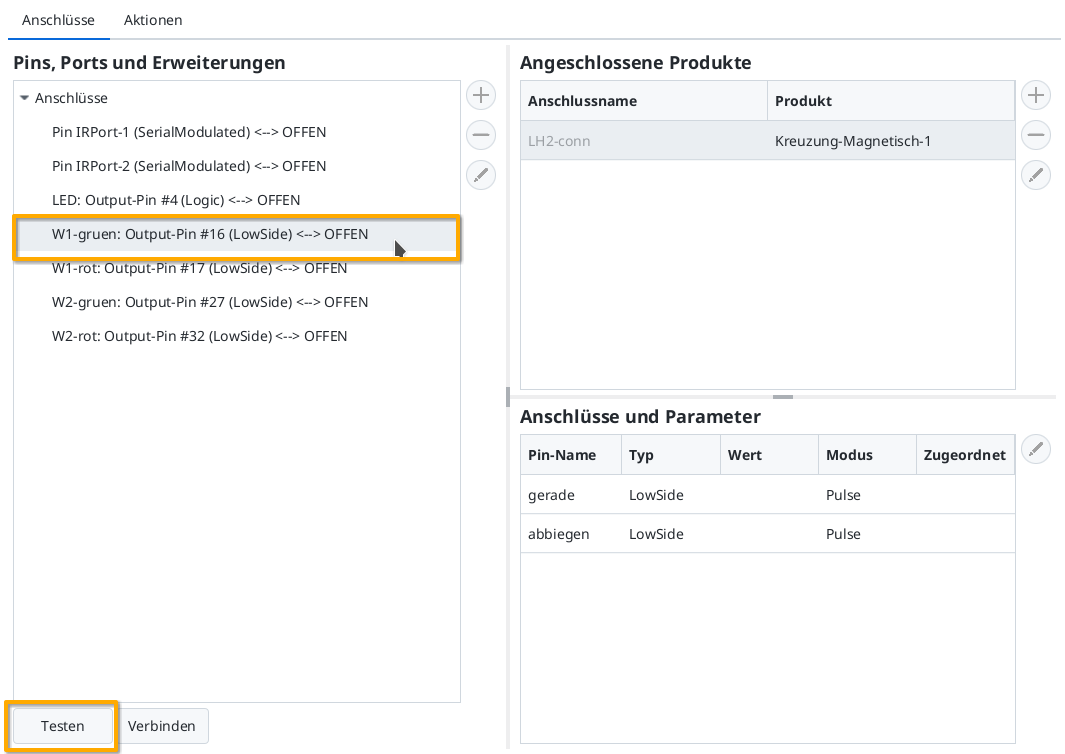

Now you need to specify which module outputs the turnout is connected to. The plug used above is soldered to “W1-green” and “W1-red”. Select “W1-green”:

Edit config 4

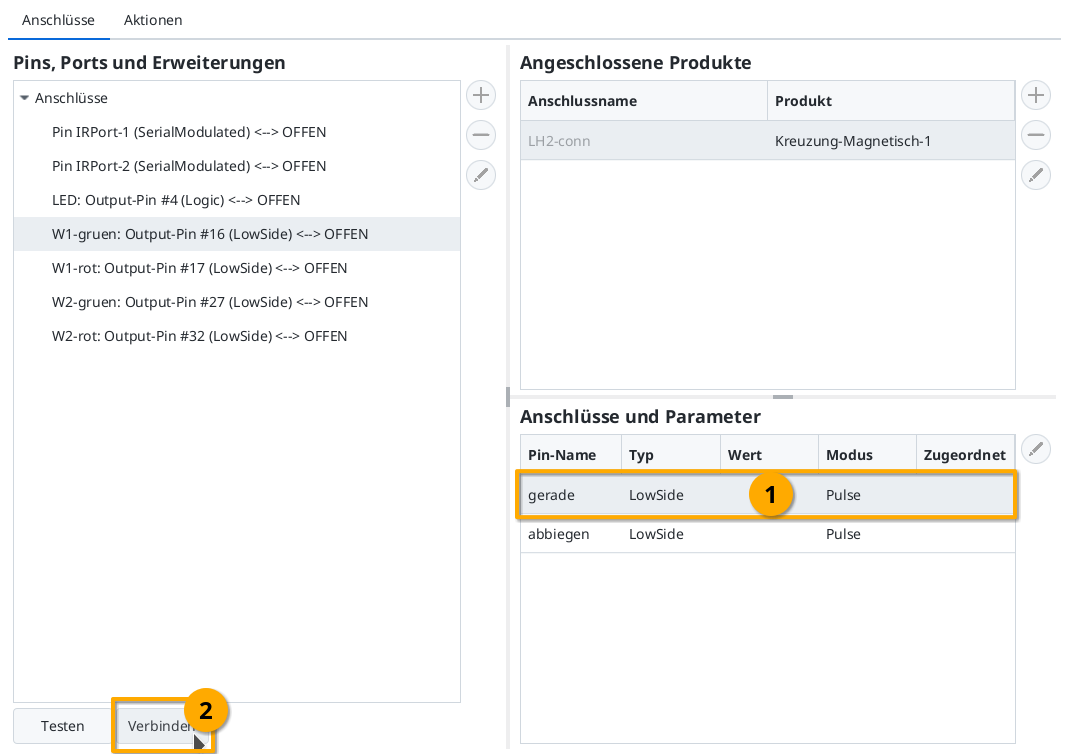

You can then click the “Test” button to check that the turnout switches and in which direction. In my example, W1-green switches to straight. Therefore I now select “straight” in the “Connections and parameters” row. Click “Connect” to assign the left-marked “W1-green: Output-Pin #16” to the “straight” connection:

Edit config 5

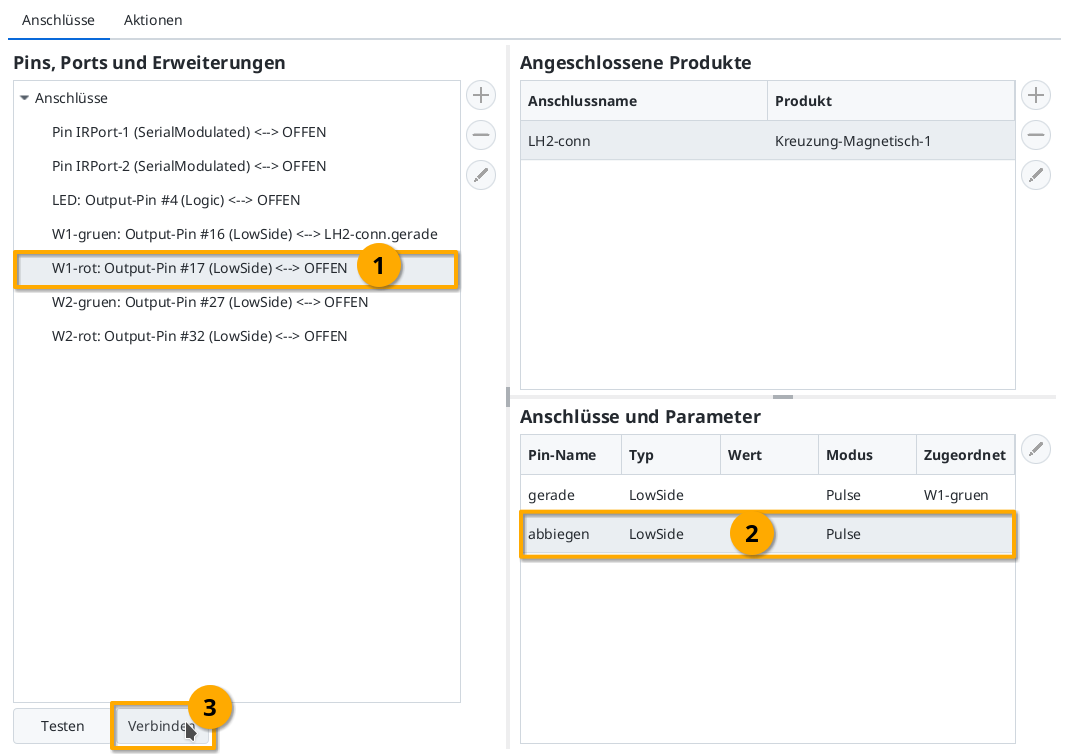

Next, in the same way, connect “W1-red” (Output-Pin #17) to the “diverge” connection:

Edit config 6

Uploading the configuration

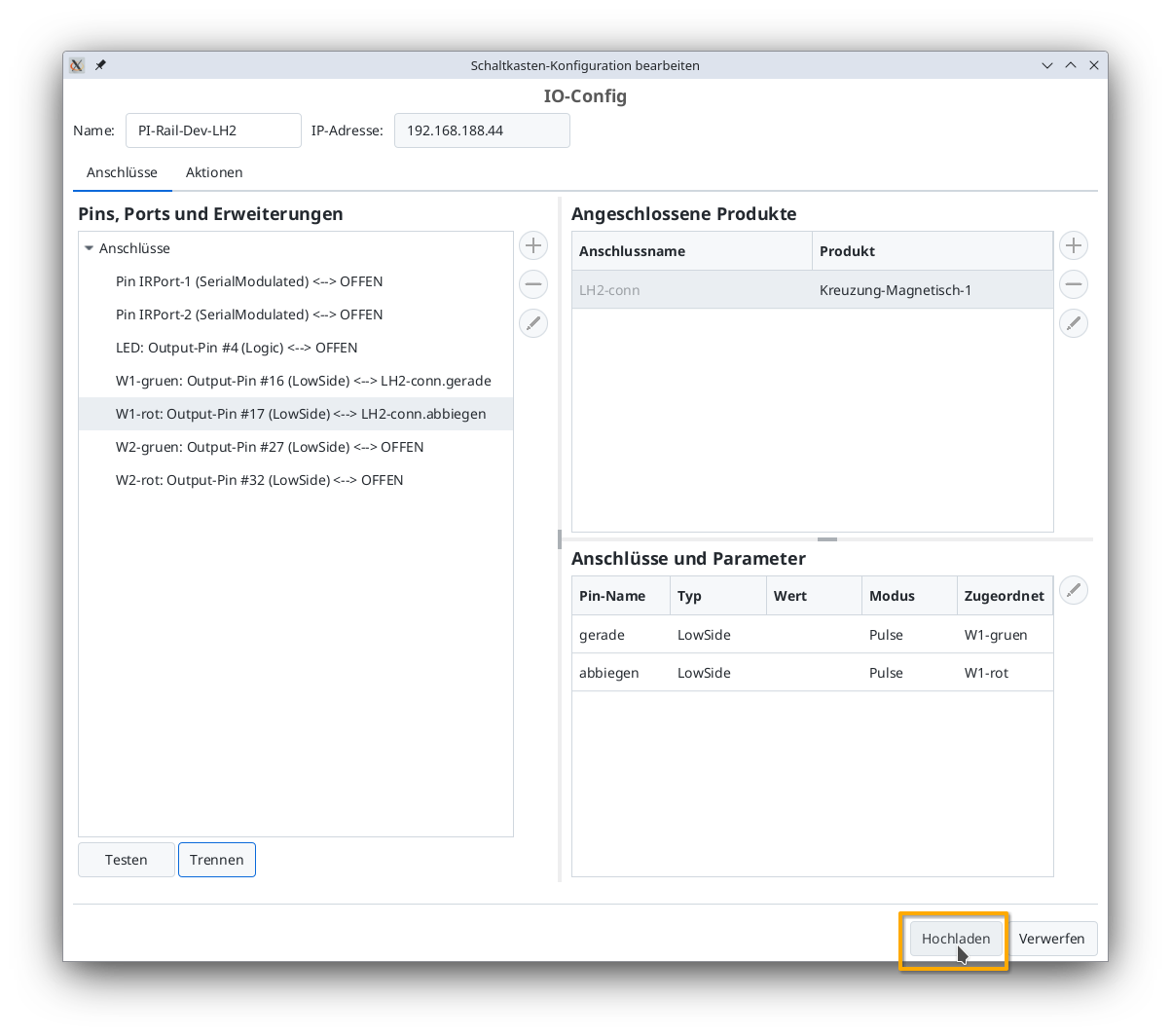

Once all pins are connected, click the “Upload” button to save the changes to the CTC-Turnout-Module:

Edit config 7

The CTC-Turnout-Module will restart.

Turnout in the signal tower

After a few seconds, the newly configured double slip turnout appears in the signal tower:

TODO
