This installation guide applies to turnouts 2260, 2261, 2262, 2263, 2264, 2265, 2266, 2267, 2268:

TODO Image K-Track Turnouts

as well as the slim turnouts 2271, 2272, 22715 and 22716 from Märklin's K-Track program.

They all use one of the drives 7549, 75491. In the example, a 3-pin plug strip is soldered to the cables: At the CTC-Turnout-Module with the item number WI-M-4L-U , there are three cables to which a suitable socket was soldered in the example.

Install and connect the CTC module

The CTC module is mounted on or under the model railway layout.

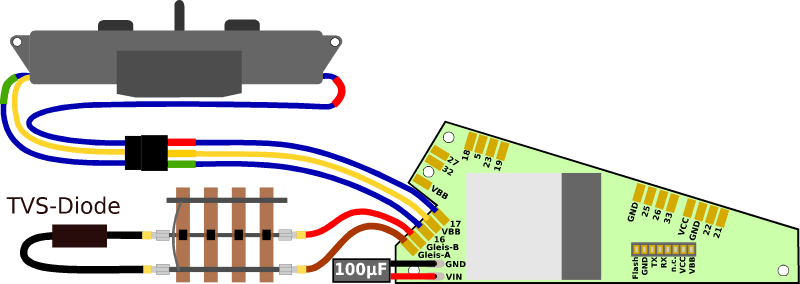

This is how the drive is connected to the CTC-Turnout-Module:

  • Plug the pin strip from the turnout drive into the socket on the CTC-Turnout-Module.
  • Connect the brown cable to the negative pole of the power supply or to the track.
  • Connect the red cable to the positive pole or to the other track.

Turnout connection

The following image shows a right-hand turnout with installed turnout drive and CTC-Turnout-Module.

TODO Turnout with drive and CTC module

The three remaining individual cables (2x blue and 1x yellow) can be used to connect a signal or another turnout. Two IR beacons can be connected to the four-pin socket.

Register the CTC module in the WiFi network

If the CTC-Turnout-Module is not yet registered in the model railway WiFi network, you must do this first. You can find the instructions in the operating instructions in Chapter 3.1 "Registering modules in the WiFi network" .

Open configuration

A registered CTC-Turnout-Module can be found under its name in the module list in the CTC app. There, click on the pencil icon to open the "Switch cabinet configuration".

Open config in module list

There, click on the "Change config" button:

Change config

Add product

In the config dialog, click on the plus button to the right of "Connected products" to select what product you have connected:

Edit config 1

Select the product catalog "universal-turnouts" and then click "Apply":

Edit config 2

Give your turnout a meaningful name and select the appropriate product and product configuration. Then click "Apply":

Edit config 3

Connect product

Now you need to specify which connections of the CTC module the turnout is connected to. The plug used above is soldered to "W1-green" and "W1-red". Select "W1-green":

Edit config 4

Then you can check by clicking the "Test" button whether the turnout switches and in which direction. In my example, W1-green switches to straight. That's why I now select the "straight" line under "Connections and parameters". By clicking "Connect", you assign the left-marked "W1-green: Output-Pin #16" to the connection "straight":

Edit config 5

Then connect "W1-red" (Output-Pin #17) to the connection "diverge" in the same way:

Edit config 6

Upload configuration

Once all pins are connected, you can click the "Upload" button to save the changes to the config on the CTC-Turnout-Module:

Edit config 7

The CTC-Turnout-Module restarts.

Turnout in the signal tower

After a few seconds, the newly configured turnout appears in the signal tower:

Turnout in signal tower
