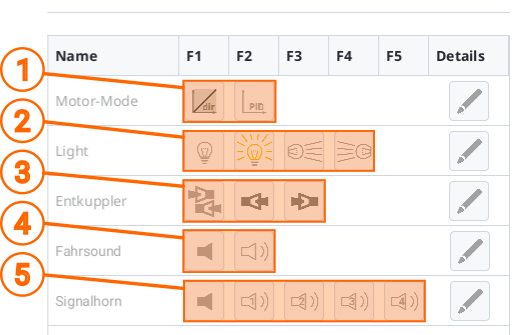

The locomotive functions are located in a table below the locomotive control:
The functions a locomotive offers are set in the configuration of the locomotive. Each function configured there shows itself with up to 5 buttons for the different states of the function. The currently active state is highlighted in color.
The factory-configured headlight (2) in the CTC locomotive modules has the following states (in the picture from left to right):
- Light off
- Automatic light: The headlight burns at the front or rear depending on the direction of travel
- Front light on
- Rear light on
The Motor-Mode (1) is also pre-configured in all CTC locomotive modules:
- The left button activates the normal mode.
- With the right button the load regulation in the form of a PID controller can be activated. The necessary condition for this is that the motor sensor has been calibrated.
The image also shows examples of functions added via the configuration of the locomotive:
- With (3) the decoupler can be deactivated, as well as activated at the front and rear.
- With (4) the drive sound can be switched on and off.
- With (5) four different signal horn sounds can be played.
