Common Features of All CTC Switching Modules

Property Description
Input Voltage approx. 9 V to 24 V DC, digital current - (AC only with smoothing capacitor)
Interfaces CTC-IR-Balise

From February 2025, we will include a TVS diode with all CTC switching modules. See the section "Overvoltage Protection" on the page "Power Supply and Router" .

Overview of CTC Switching Modules (from 40,- EUR)

For switching turnouts, signals, lights, etc., the following CTC modules are available:

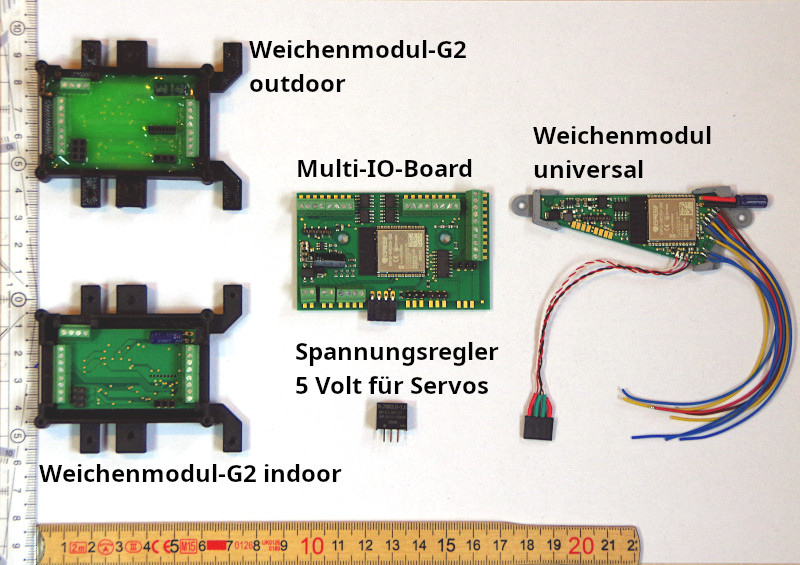

Turnout Modules

CTC-Turnout-Module Optimized for Dimensions Switching Outputs Servos Sensor Inputs IR-Balises Max. Current Sum
CTC-Turnout-Module Solenoid-driven, Märklin C-Track 68 x 26 mm 4x 0,5 A Lowside - - 2 2 A
CTC-Turnout-Module-G Garden railway, motor drive 53 x 31 mm 4x 2 A Half-Bridge 2 4 2 3 A
CTC-Multi-I/O-Board Solenoid-driven, servos 74 x 46 mm 8x 0,5 A Lowside 2 4 2 2 A

Notes:

  • Operating CTC modules with alternating current (AC) or unfiltered direct current without an additional capacitor will cause irreparable damage to the CTC module.
  • Switching outputs are differentiated by whether they switch ground or negative (LowSide) or the positive pole (HighSide). Especially for LED boards, one pole often has a common line. It is important to know whether the switching outputs of the module are designed as HighSide or LowSide.
  • A half-bridge can switch between positive and negative poles but is never switched off. Especially classic solenoid-driven turnouts (e.g., Märklin) can suffer permanent damage if the half-bridge is configured incorrectly and should therefore not be connected to a half-bridge.
  • For servos, an additional power supply module is required.

Installation Instructions

Turnouts

For the CTC-Turnout-Module, the following installation instructions are available:

Instructions for the CTC-Turnout-Module-G:

Servos

Turntable

The CTC-Turnout-Module-G can also be connected to a turntable, see Connection Fleischmann Turntable
